HENAN UME CABLE CO., LTD. sales@umecable.com 86-186-38615776
Product Details
Certification: ISO9001, CE, SGS TUV
Payment & Shipping Terms
Model NO.: |
Airdac Cable |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Printing: |
Laser Printing , Hot Printing , Ink Printing |
Warranty: |
24 Months |
Transport Package: |
Drum |
Specification: |
As Per Client |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
7000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Construction Sites, Street Lighting |
Conductor Material: |
Aluminum, Aluminum And Steel, Aluminum Alloy |
Sheath Material: |
PE, XLPE, PVC |
Insulation Material: |
PE, XLPE, PVC |
Samples: |
US$ 2/Meter 1 Meter(Min.Order) | Request Samp |
Model NO.: |
Airdac Cable |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Printing: |
Laser Printing , Hot Printing , Ink Printing |
Warranty: |
24 Months |
Transport Package: |
Drum |
Specification: |
As Per Client |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
7000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Construction Sites, Street Lighting |
Conductor Material: |
Aluminum, Aluminum And Steel, Aluminum Alloy |
Sheath Material: |
PE, XLPE, PVC |
Insulation Material: |
PE, XLPE, PVC |
Samples: |
US$ 2/Meter 1 Meter(Min.Order) | Request Samp |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
Applications

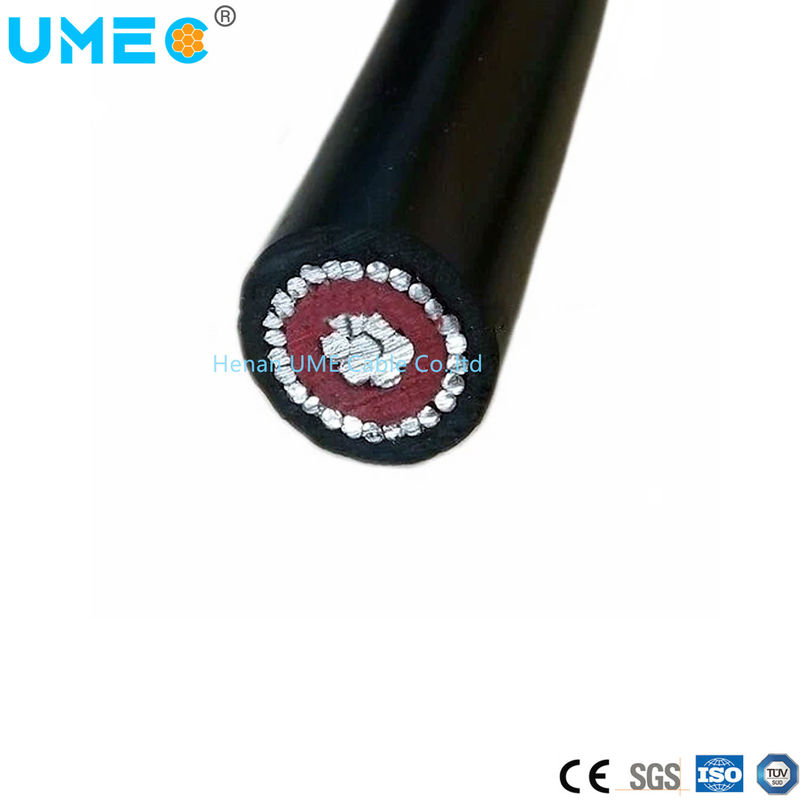

The insulated neutrals and bare earth wires are laid in a concentric layer around the insulated phase conductor with XLPE string separators separating the neutral and earths. This is then bound with a clear polyester tape and then PE sheathed.
This type of conductor can be used in dry and wet places, directly buried or outdoors,its maximum temperature of operation is 70 degree (PVC or PE insulation ) or 90 degree(XLPE Insulation ) and its voltage of service for all the applications is 600V.
Construction
Phase Conductor: 8000s Aluminum Alloy Conductor or Copper Conductor
Insulation:XLPE/PE/PVC
Bedding:Non-woven tape
Concentric Conductor:Aluminum alloy conductor
Outer sheath:XLPE/PE/PVC
Common Use Size
2*8AWG, 2*6 AWG, 2*4AWG, 2*2AWG, 2*1/0AWG, 2*2/0AWG,
3*8AWG, 3*6AWG, 3*4AWG, 3*2AWG, 3*1/0AWG, 3*2/0AWG,
4*8AWG, 4*6AWG, 4*4AWG,4*2AWG and so on
| ASTM 600/1000v | |||||||||
| Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||
| Conductor | Insulation | Concentric conductor | Outer sheath | ||||||
| Single wire | XLPE | Single wire | UV-PVC | ||||||
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||
| 1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 |
| 1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 |
| 1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 |
| 1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 |
| 1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 |
| IEC 60502-1 IEC 60228 600/1000v | |||||||||
| Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||
| Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||
| Single wire | Dia. | PVC | Single wire | UV-PVC | |||||
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||
| 10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 |
| 16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 |
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 |
| 16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 |
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 |
| 35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
