Product Details
Certification: ISO9001, CE, SGS TUV
Payment & Shipping Terms
Model NO.: |
Rubber Cable |
Material Shape: |
Round Wire |
Range Of Application: |
Drives Devices, Household Electrical Instrument |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Printing: |
Laser Printing, Hot Printing, Ink Printing |
Transport Package: |
Drum |
Specification: |
Up To 5cores |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
6000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Drives Devices, Household Electrical Instrument |
Conductor Material: |
Copper |
Sheath Material: |
Rubber |
Insulation Material: |
Rubber |
Samples: |
US$ 0.01/Meter 1 Meter(Min.Order) | Request S |
Model NO.: |
Rubber Cable |
Material Shape: |
Round Wire |
Range Of Application: |
Drives Devices, Household Electrical Instrument |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Printing: |
Laser Printing, Hot Printing, Ink Printing |
Transport Package: |
Drum |
Specification: |
Up To 5cores |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
6000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Drives Devices, Household Electrical Instrument |
Conductor Material: |
Copper |
Sheath Material: |
Rubber |
Insulation Material: |
Rubber |
Samples: |
US$ 0.01/Meter 1 Meter(Min.Order) | Request S |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

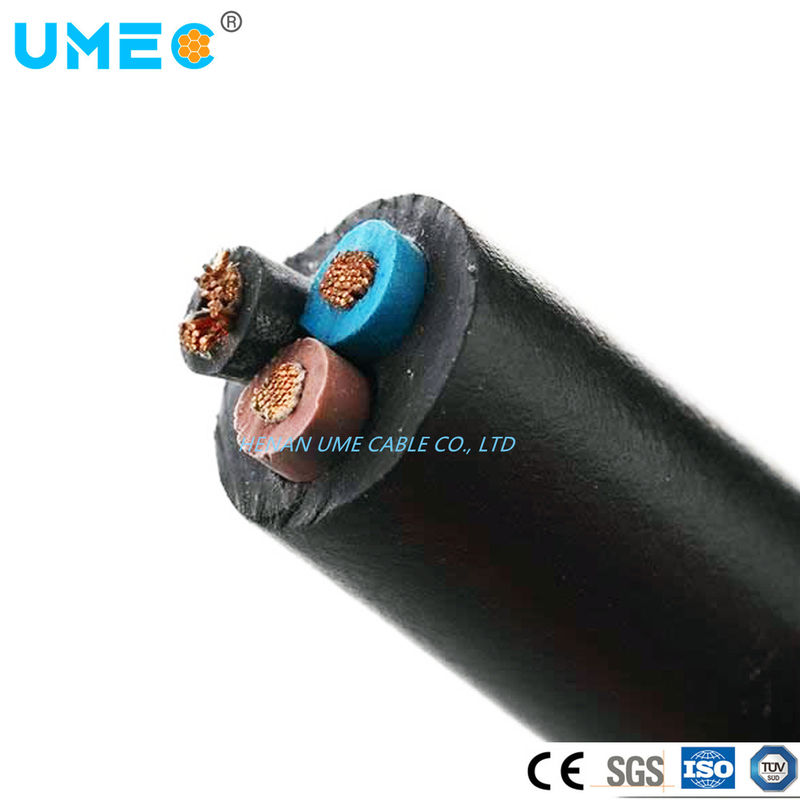

| General Rubber Flex Cable Construction | |
| Conductor | Stranded bare copper or tinned copper or annealed copper |
| Core | Single, multi-core |
| Jacket | Rubber/ TPE/CPE/EPDM/ Silicone |
2. Standards
General Rubber Sheathed Flexible Cable meets or exceeds the following standards:
IEC 60245, GB5013
3. Operating Features
The rated voltage rating is up to 450/750V.
The long-time permissible operating temperature is 60ºC.
| Model | Name | Rated Voltage(V) | Section Area(mm2) | No. of Cores | Usage |
| YQ, YQW | Light model rubber sheath flexible cable | 300/300 | 0.30.5 | 2,3 | Used for light portable electric equipment and tools |
| IEC60245-53(YZ) YZ | Middle model rubber sheath flexible cable | 300/500 | 0.75--6 | 2,3,4,5 | Used for various portable electric equipment and tools |
| IEC60245-57(YZW) YZW | |||||
| YC | Heavy model rubber sheath flexible cable | 450/750 | 1.5--400 | 1 | Used for various portable electric equipment which can bear large mechanical force effect |
| 1.5--95 | 2 | ||||
| 1.5--150 | 3 | ||||
| IEC60245-66 YCW | 1.5--150 | 4 | |||
| 2.515 | 3+1 | ||||
| + | |||||
| 1.5--50 | |||||
| 1.5--25 | 5 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
