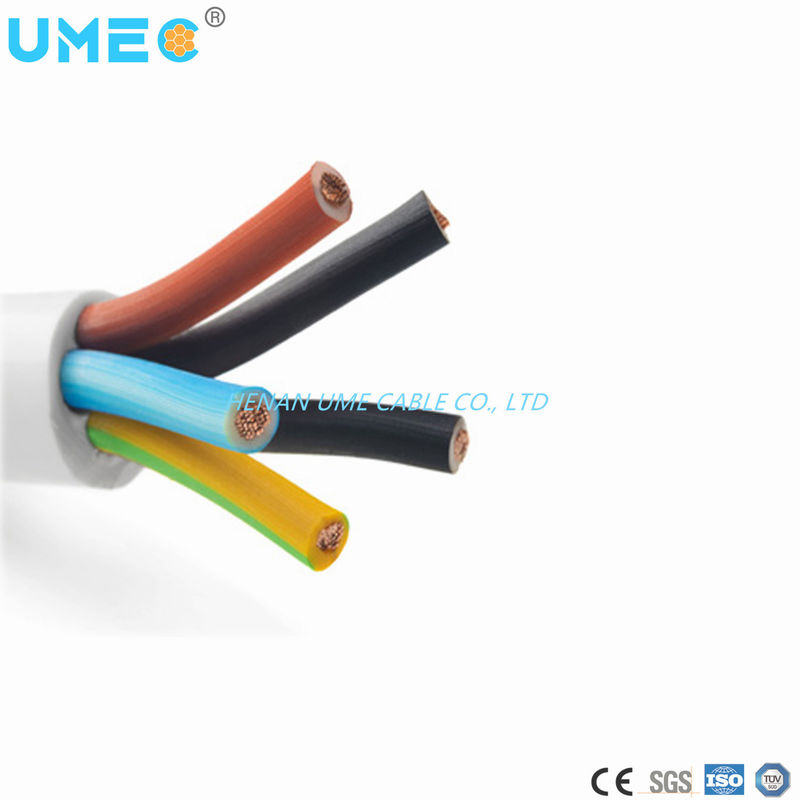

Building Householding H05VVF Electrical Wire with PVC Insulation and Copper Conductor

Product Details

Certification: ISO9001, CE

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:
Model NO.:
Power Cable H05VVF Wire
Material Shape:
Round Wire
Range Of Application:
Building Householding
Brand:
Ume
Third Party Inspection:
Accepted
Sample:
Free
Color:
Customer Specified
OEM:
Accepted
Transport Package:
Drum
Specification:
H05VVF
Trademark:
UME
Origin:
China
HS Code:
7413000000
Supply Ability:
500, 000km Per Month
Type:
Insulated
Conductor Type:
Solid Strand Flexible
Application:
Underground, Building Householding
Conductor Material:
Copper
Sheath Material:
None
Insulation Material:
PVC
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Model NO.:
Power Cable H05VVF Wire
Material Shape:
Round Wire
Range Of Application:
Building Householding
Brand:
Ume
Third Party Inspection:
Accepted
Sample:
Free
Color:
Customer Specified
OEM:
Accepted
Transport Package:
Drum
Specification:
H05VVF
Trademark:
UME
Origin:
China
HS Code:
7413000000
Supply Ability:
500, 000km Per Month
Type:
Insulated
Conductor Type:
Solid Strand Flexible
Application:
Underground, Building Householding
Conductor Material:
Copper
Sheath Material:
None
Insulation Material:
PVC
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Product Description

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire
1. Applications
Flexible cables for mobile lightweight, suitable for installation in homes, kitchens, offices, for connection of portable light as hair dryers, washing machines, refrigerators.

2. Standards
BS EN 50525-2-11

Product Parameters
  H05VVF Wire
Nominal Cross
Section Area
No. of Wires
/Dia. of Wires
Approx. Dia. of Conductor Thickness
of
Insulation
Thickness
of
Sheath
Approx. Overall
 Dia.
Approx.
Weight
of Cable
Max. Conductor
Resistance
 at 20°C
Min.
Insulation
Resistance
at 70°C
mm2 No./mm mm mm mm mm kg/km Ω/km MΩ.km
2x0.75 24/0.2 1.12 0.6 0.8  6.24  54  26.0  0.011
2x1.0 34/0.2 1.29 0.6 0.8  6.58  62  19.5 0.010
2x1.5 30/0.25 1.57 0.7 0.8  7.54  84  13.3 0.010
2x2.5 49/0.25 2.02 0.8 1.0  9.24  130  7.98  0.0095
2x4.0 56/0.3 2.9 0.8  1.1  11.20  193  4.95 0.0078
3x0.75 24/0.2 1.12 0.6  0.8  6.60  65  26.0  0.0110
3x1.0 34/0.2 1.29 0.6 0.8  6.96  76  19.5 0.0100
3x1.5 30/0.25 1.57 0.7 0.9  8.20  106  13.3 0.0100
3x2.5 49/0.25 2.02 0.8 1.1  10.00  163  7.98  0.0095
3x4.0 56/0.3 2.9 0.8 1.2  12.10  242  4.95 0.0078
4x0.75 24/0.2 1.12 0.6 0.8  7.20  78  26.0  0.0110
4x1.0 34/0.2 1.29 0.6 0.9  7.81  95  19.5 0.0100
4x1.5 30/0.25 1.57 0.7 1.0  9.17  134  13.3 0.0100
4x2.5 49/0.25 2.02 0.8  1.1  10.94  199  7.98  0.0095
4x4.0 56/0.3 2.9 0.8 1.2  13.26  297  4.95 0.0078
5x0.75 24/0.2 1.12 0.6 0.9  8.06  96  26.0  0.0110
5x1.0 34/0.2 1.29 0.6 0.9  8.52  113  19.5 0.0100
5x1.5 30/0.25 1.57 0.7 1.1  10.22  163  13.3 0.0100
5x2.5 49/0.25 2.02 0.8  1.2  12.17  242  7.98  0.0095
5x4.0 56/0.3 2.9 0.8 1.4  14.95  367  4.95 0.0078
TESTING



HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!



     Production:

  • Raw material inspection and test
  • Production process test
  • Unqualified product control
  • Regular test and examination
  • Finished product inspection
Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire



Certifications
UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire




Packaging & Shipping



Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire
Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire



Customer Visit

Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire


Company Profile
Power Cable PVC Insulated Copper Conductor The Electrical H05vvf Multicore Wire
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.



FAQ

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
  Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
  Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
  We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
  T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
