Product Details
Certification: ISO9001, CE, SGS TUV
Payment & Shipping Terms

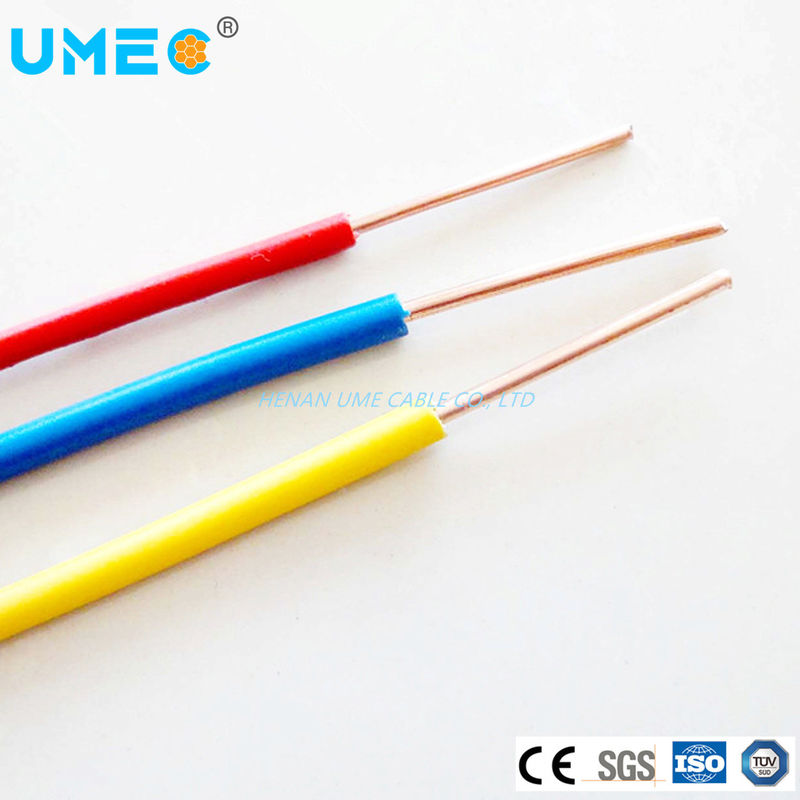

Model NO.: |
BV |
Material Shape: |
Round Wire |
Range Of Application: |
Building |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Transport Package: |
Drum |
Specification: |
BV |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544110000 |
Supply Ability: |
500, 000km Per Month |
Type: |
Insulated |
Conductor Type: |
Solid Strand Flexible |
Application: |
Underground, Building Household |
Conductor Material: |
Copper |
Sheath Material: |
None |
Insulation Material: |
PVC |
Samples: |
US$ 1/Piece 1 Piece(Min.Order) | Request Samp |
Model NO.: |
BV |
Material Shape: |
Round Wire |
Range Of Application: |
Building |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Transport Package: |
Drum |
Specification: |
BV |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544110000 |
Supply Ability: |
500, 000km Per Month |
Type: |
Insulated |
Conductor Type: |
Solid Strand Flexible |
Application: |
Underground, Building Household |
Conductor Material: |
Copper |
Sheath Material: |
None |
Insulation Material: |
PVC |
Samples: |
US$ 1/Piece 1 Piece(Min.Order) | Request Samp |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.![]()
1. Applications
They are widely used as connectors of driving, lighting, electric equipment, instrument, and telecommunication equipment with rated voltage up to 450/750V.
| Nominal sectional Area(mm²) | Conductor No./Dia(mm). | Nominal Insulated Thickness(mm) | Max Overall Dia. (mm) | Max D.C. Conductor resistance at 70ºC(m Ω/km) | Min Insulated Resistance at 70ºC(m Ω/km) | Weight(kg/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.1 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 |
| 1.0 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.2 |
| Rated Voltage (V) | Nominal crosssection(mm²) | Condutor type | Upper limit of O.D.(mm) | Max D.C. resistance at 20ºC(Ω/km) | Max insulation resistance at 70ºC(MΩ/km) | Recommended ampacity(A) | Reference weight of cable(kg/km) |
| 300/500 | 0.5 | 1 | 2.4 | 36.0 | 0.015 | 13 | 8.3 |
| 0.75 | 1 | 2.6 | 24.5 | 0.012 | 17 | 10.9 | |
| 0.75 | 2 | 2.8 | 24.5 | 0.014 | 17 | 11.8 | |
| 1.0 | 1 | 2.8 | 18.1 | 0.011 | 20 | 13.7 | |
| 1.0 | 2 | 3.0 | 18.1 | 0.013 | 20 | 14.8 | |
| 450/750 | 1.5 | 1 | 3.3 | 12.1 | 0.011 | 25 | 20.0 |
| 1.5 | 2 | 3.4 | 12.1 | 0.010 | 25 | 21.3 | |
| 2.5 | 1 | 3.9 | 7.41 | 0.010 | 34 | 31.5 | |
| 2.5 | 2 | 4.2 | 7.41 | 0.009 | 34 | 34.4 | |
| 4.0 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 | |
| 4.0 | 2 | 4.8 | 4.61 | 0.0077 | 44 | 50.0 | |
| 6.0 | 1 | 4.9 | 3.08 | 0.0070 | 58 | 66.7 | |
| 6.0 | 2 | 5.4 | 3.08 | 0.0065 | 58 | 71.0 | |
| 10 | 2 | 6.8 | 1.83 | 0.0065 | 79 | 118.0 | |
| 16 | 2 | 8.0 | 1.15 | 0.0050 | 111 | 178.0 | |
| 25 | 2 | 9.8 | 0.727 | 0.0050 | 146 | 280.0 | |
| 35 | 2 | 11.0 | 0.524 | 0.0040 | 180 | 378 | |
| 50 | 2 | 13.0 | 0.387 | 0.0045 | 282 | 508 | |
| 70 | 2 | 15.0 | 0.268 | 0.0035 | 281 | 717 | |
| 95 | 2 | 17.0 | 0.193 | 0.0035 | 344 | 991 | |
| 120 | 2 | 19.0 | 0.153 | 0.0032 | 397 | 1228 | |
| 150 | 2 | 21.0 | 0.124 | 0.0032 | 456 | 1511 | |
| 185 | 2 | 23.5 | 0.0991 | 0.0032 | 519 | 1894 | |
| 240 | 2 | 26.5 | 0.0754 | 0.0032 | 592 | 2468 | |
| 300 | 2 | 29.5 | 0.0601 | 0.0030 | 685 | 3089 | |
| 400 | 2 | 33.5 | 0.0470 | 0.0028 | 799 | 3935 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
![]()
Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
