Product Details
Certification: ISO9001, CE, SGS TUV
Payment & Shipping Terms

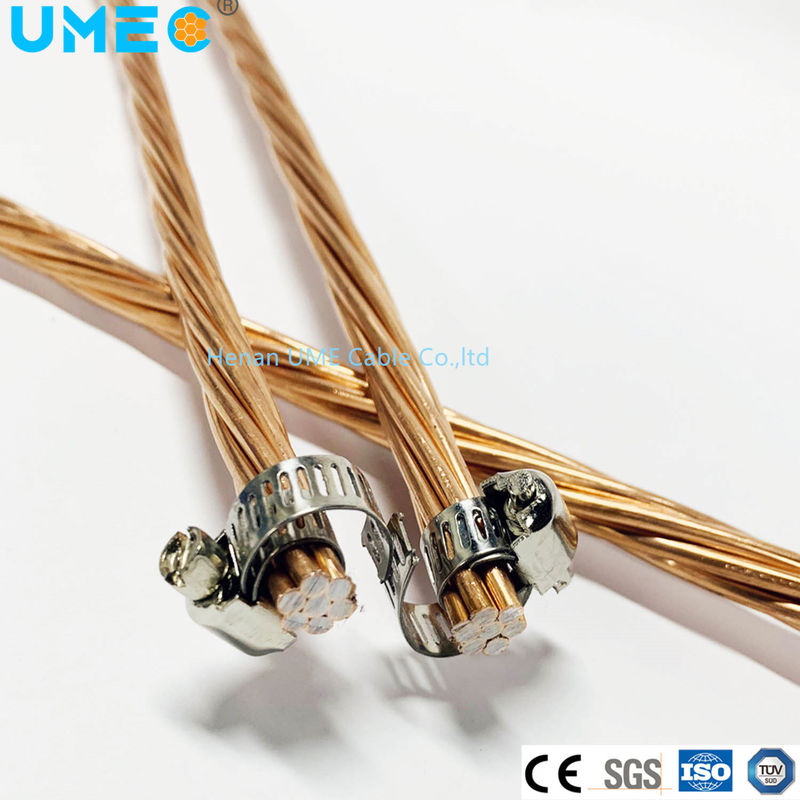

Model NO.: |
Copperweld Wire |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead And Ground |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
OEM: |
Support |
Warranty: |
24 Months |
Transport Package: |
Drum |
Specification: |
Up To 8.0mm |
Trademark: |
UME |
Origin: |
China |
HS Code: |
7312100000 |
Supply Ability: |
7000km Per Month |
Type: |
Bare |
Conductor Type: |
Stranded |
Application: |
Overhead |
Conductor Material: |
Copper Clad Steel |
Sheath Material: |
None |
Insulation Material: |
Bare |
Samples: |
US$ 2/Meter 1 Meter(Min.Order) | Request Samp |
Model NO.: |
Copperweld Wire |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead And Ground |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
OEM: |
Support |
Warranty: |
24 Months |
Transport Package: |
Drum |
Specification: |
Up To 8.0mm |
Trademark: |
UME |
Origin: |
China |
HS Code: |
7312100000 |
Supply Ability: |
7000km Per Month |
Type: |
Bare |
Conductor Type: |
Stranded |
Application: |
Overhead |
Conductor Material: |
Copper Clad Steel |
Sheath Material: |
None |
Insulation Material: |
Bare |
Samples: |
US$ 2/Meter 1 Meter(Min.Order) | Request Samp |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.Applications
It is used in frequency coaxial cable, messenger wire, telephone drop-wire and distribution wire;
It is used as the lead-wire for electronics, carrying wire for railroad and wire for power transmission
It is used in bind wire, jewellery chain, piano string cover and pipe insulation wire.
Standard
ASTM B227, BS 4087, ASTM B 452, ASTM B 869
Type
21A, 21HS, 30A, 30HS, 30EHS, 40A, 40HS, 40EHS
Conductivity
21%IACS - 45%IACS
No./size of strands | Structure No./mm | Cross-section mm2 | Rated strength kN | DC Resistance,Ω/km | Approx. weight kg/km | ||||
| Grade 40 HS | Grade 30 HS | Grade 30 EHS | Grade 40 | Grade 30 | Grade 30 | Grade 40 | |||
| 3 No. 5 | 3/4.62 | 50.32 | 37.30 | 41.20 | 52.80 | 0.881 | 1.174 | 413.41 | 417.73 |
| 3 No.6 | 3/4.11 | 39.80 | 30.90 | 34.00 | 43.40 | 1.111 | 1.481 | 327.84 | 331.26 |
| 3 No. 7 | 3/3.67 | 31.65 | 25.50 | 28.00 | 35.30 | 1.401 | 1.867 | 259.39 | 262.66 |
| 3 No. 8 | 3/3.26 | 25.10 | 21.10 | 23.00 | 27.95 | 1.766 | 2.354 | 206.11 | 208.34 |
| 3 No. 9 | 3/2.91 | 19.90 | 17.13 | 18.90 | 22.80 | 2.227 | 2.969 | 163.55 | 165.19 |
| 3 No.10 | 3/2.59 | 15.78 | 14.35 | 15.60 | 18.50 | 2.808 | 3.744 | 129.62 | 130.99 |
| 3 No. 12 | 3/2.05 | 9.90 | 7.65 | 4.465 | 81.551 | 82.414 | |||
| 7 No. 4 | 7/5.19 | 148.10 | 99.30 | 110.30 | 130.90 | 0.300 | 0.400 | 1218.7 | 1231.5 |
| 7 No.5 | 7/4.62 | 117.40 | 82.40 | 91.10 | 109.70 | 0.378 | 0.504 | 966.41 | 976.53 |
| 7 No.6 | 7/4.11 | 93.10 | 68.20 | 75.20 | 91.00 | 0.477 | 0.636 | 766.25 | 774.29 |
| 7 No. 7 | 7/3.67 | 73.87 | 56.40 | 61.90 | 75.20 | 0.601 | 0.802 | 608.06 | 614.46 |
| 7 No.8 | 7/3.26 | 58.56 | 46.60 | 50.90 | 61.80 | 0.759 | 1.011 | 482.02 | 487.07 |
| 7 No. 9 | 7/2.91 | 46.44 | 38.40 | 41.20 | 50.20 | 0.956 | 1.275 | 382.16 | 386.18 |
| 7 No. 10 | 7/2.59 | 36.83 | 30.90 | 34.00 | 40.90 | 1.206 | 1.60 | 303.14 | 306.26 |
| 19 No. 5 | 19/4.62 | 318.70 | 223.50 | 247.20 | 297.60 | 0.140 | 0.187 | 2634 | 2660.8 |
| 19 No. 6 | 19/4.11 | 252.70 | 185.10 | 203.90 | 247.00 | 0.176 | 0.176 | 2087.9 | 2110.2 |
| 19 No. 7 | 19/3.67 | 200.40 | 153.00 | 167.90 | 204.00 | 0.222 | 0.297 | 1656.3 | 1674.2 |
| 19 No. 8 | 19/3.26 | 158.90 | 126.30 | 138.10 | 167.70 | 0.281 | 0.374 | 1313.6 | 1327.2 |
| 19 No. 9 | 19/2.91 | 12610 | 104.10 | 113.50 | 136.20 | 0.354 | 0.471 | 1041.7 | 1052.6 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
