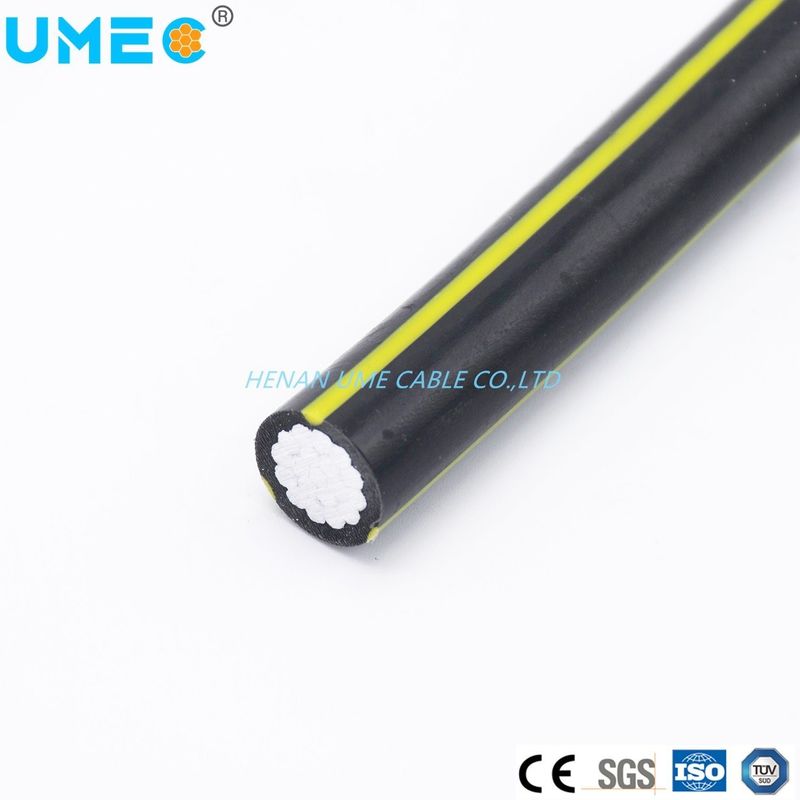

Aluminum Alloy6201 Concentrically Stranded Covered Line Wire Made for Your OEM Buyers

Product Details

Certification: ISO9001, CE, SGS TUV

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Model NO.:	Aluminum Alloy6201 Covered Line Wire	Material Shape:	Round Wire
Range Of Application:	Overhead	Brand:	Ume
Third Party Inspection:	Accepted	Sample:	Free
Color:	Customer Specified	OEM:	Accepted
Transport Package:	Drum	Specification:	Aluminum Alloy6201 Covered Line Wire
Trademark:	UME	Origin:	China
HS Code:	8544492100	Supply Ability:	500, 000km Per Month
Type:	Insulated	Conductor Type:	Solid Strand
Application:	Overhead	Conductor Material:	Aluminum
Sheath Material:	None	Insulation Material:	XLPE
Samples:	US$ 1/Piece 1 Piece(Min.Order) \| Request Samp

Model NO.:	Aluminum Alloy6201 Covered Line Wire
Material Shape:	Round Wire
Range Of Application:	Overhead
Brand:	Ume
Third Party Inspection:	Accepted
Sample:	Free
Color:	Customer Specified
OEM:	Accepted
Transport Package:	Drum
Specification:	Aluminum Alloy6201 Covered Line Wire
Trademark:	UME
Origin:	China
HS Code:	8544492100
Supply Ability:	500, 000km Per Month
Type:	Insulated
Conductor Type:	Solid Strand
Application:	Overhead
Conductor Material:	Aluminum
Sheath Material:	None
Insulation Material:	XLPE
Samples:	US$ 1/Piece 1 Piece(Min.Order) \| Request Samp

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

1. Applications

Covered Line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.

2. Construction

Conductors are aluminum alloy 1350-H19, 6201-181, or ACSR conductors, concentrically stranded and covered for weather proofing with low density polyethylene (LDPE), high density polyethylene (HDPE) or crosslinked polyethylene (XLPE) insulation.

3. Standard
ASTM B-230, ASTM B-231, B-399, ICEAS-61-402/S-66-524

CODE	EQUIV DIA	SIZE	STRAND- ING	COVER THICKNESS (MILS)	TOTAL DIAMETER (MILS)	RATED STRENGTH (LBS.)	WEIGHT PER 1000 FT. (LBS.)			ALLOWABLE
WORD	(AWG)*	(KCMIL)	STRAND- ING	COVER THICKNESS (MILS)	TOTAL DIAMETER (MILS)	RATED STRENGTH (LBS.)	XLP	Conv. Poly	HD Poly	AMPACITY+
6201 ALUMINUM Alloy
Hornbeam	4	48.69	7	30	310	1360	60	60	-	145
Linden	2	77.47	7	45	406	2160	99	99	-	190
Oilnut	1/0	123.3	7	60	518	3440	159	159	-	250
Waterash	2/0	155.4	7	60	567	4160	195	195	-	290
Shellbark	3/0	195.7	7	60	622	5240	240	240	-	335
Planetree	4/0	246.9	7	60	683	6610	297	297	-	385

Covered Line Wire

Covered line Wire ( Bare Overhead Conductor )

Code Name		Size	No. of wires	Insulation Thickness (mm)	Overall Diameter (mm)		Rated Strength (kg)	Nominal Weight (kg/km)								Allowable Ampacity+ A


		AWG or kcmil						Aluminum	LDPE			HDPE		XLPE
AAC
Plum		6	7	0.762	6.198		255	36.61		50.66	51.27		51.27		100
Apricot		4	7	0.762	7.239		400	58.19		75.57	76.33		76.33		135
Peach		2	7	1.143	9.703		612	92.56		126.09	127.55		127.55		180
Nectarine		1	7	1.143	11.481		789	116.67		167.31	169.52		169.52		210
Quince		1/0	7	1.524	12.395		903	147.48		203.7	206.14		206.14		240
Haw		1/0	19	1.524	12.522		980	147.48		204.49	206.96		206.96		240
Orange		2/0	7	1.524	14.834		1139	186.02		257.9	261.02		261.02		280
Ironwood		2/0	19	1.524	13.691		1211	186.02		250.41	253.21		253.21		280
Fig		3/0	7	1.524	16.307		1377	233.64		315.53	319.08		319.08		320
Lemon		3/0	19	1.524	14.986		1501	233.64		306.53	309.7		309.7		320
Olive		4/0	7	1.524	16.307		1728	296.14		378.04	381.58		381.58		370
Pomegranate		4/0	19	1.524	16.459		1823	296.14		379.09	382.69		382.69		370
Sassafras		250	19	1.524	17.628		2043	348.68		439.88	443.84		443.84		420
Mulberry		266.8	19	1.524	17.653		2182	372.19		463.59	467.55		467.55		430
Basswood		300	19	1.524	18.999		2404	419.66		520.91	525.3		525.3		478
Anona		336.4	19	1.524	19.964		2697	469.51		578.04	582.75		582.75		495
Chinquapin		350	19	1.524	20.269		2790	488.12		598.98	603.79		603.79		525
Molles		397.5	19	2.032	22.454		3123	555.08		707.29	713.88		713.88		550
Sumac		450	37	2.032	23.673		3719	628		791.79	798.89		798.89		600
Huckleberry		477	37	2.032	24.257		3810	665.21		834.63	841.98		841.98		610
ACSR
Walnut	6			6/1	0.762	6.553		540	36.64		69.94		71.43		71.43		105
Butternut	4			6/1	0.762	7.874		844	58.04		107.15		107.15		107.15		135
Hickory	4			7/1	0.762	8.052		1070	58.04		120.54		122.03		122.03		135
Pignut	2			6/1	1.143	10.312		1293	92.27		175.6		177.09		177.09		180
Beech	2			7/1	1.143	10.643		1651	92.27		199.41		199.41		199.41		180
Chestnut	1			6/1	1.143	11.303		1610	116.37		17.27		218.76		218.76		210
Almond	1/0			6/1	1.524	13.157		1987	146.73		282.75		284.24		284.24		235
Pecan	2/0			6/1	1.524	14.402		2404	184.98		348.23		349.72		349.72		290
Filbert	3/0			6/1	1.524	15.799		3003	233.34		430.08		433.05		433.05		305
Buckeye	4/0			6/1	1.524	17.348		3787	394.21		531.27		535.74		535.74		345
Hackberry	266.8			18/1	1.524	18.517		3121	372.63		525.32		528.3		528.3		356
AAAC
Maple	6			7	0.762		6.553	503	42.41		59.53	61.01			61.01		78
Hornbeam	4			7	0.762		7.874	798	67.56		89.29	90.78			90.78		145
Linden	2			7	1.143		10.312	1270	107.44		147.33	147.33			147.33		190
Oilnut	1/0			7	1.524		11.887	2023	170.99		238.11	247.03			247.03		250
Waterash	2/0			7	1.524		14.402	2445	215.63		291.68	302.01			302.01		290
Shellbark	3/0			7	1.524		15.799	3080	271.59		358.65	370.55			370.55		335

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

Raw material inspection and test
Production process test
Unqualified product control
Regular test and examination
Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

Aluminum Alloy6201 Concentrically Stranded Covered Line Wire

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
  Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
  Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
  We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
  T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
