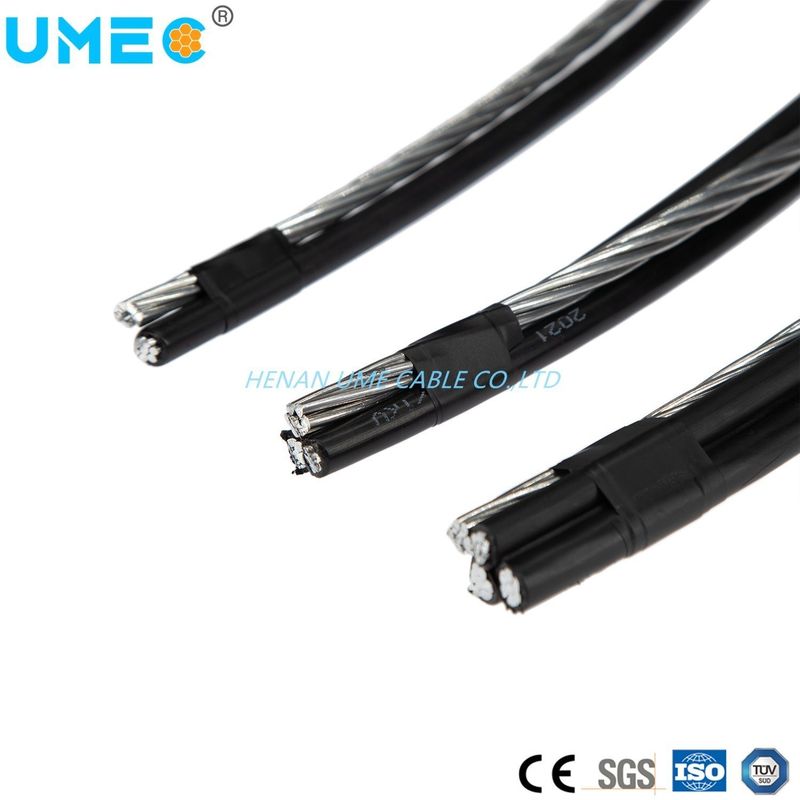

Direct Overhead Aerial Service Drop Caai Cable with Accepted Third Party Inspection

Product Details

Certification: ISO9001, CE, SGS TUV

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Model NO.:	CAAI Cable	Material Shape:	Round Wire
Range Of Application:	Overhead	Brand:	Ume
Third Party Inspection:	Accepted	Sample:	Free
Color:	Customer Specified	OEM:	Accepted
Printing:	Laser Printing, Hot Printing, Ink Printing	Transport Package:	Drum
Specification:	Up To 336.4AWG	Trademark:	UME
Origin:	China	HS Code:	8544492100
Supply Ability:	7000km Per Month	Type:	Insulated
Conductor Type:	Stranded	Application:	Overhead, Construction Sites, Outdoor, Street Lighting
Conductor Material:	Aluminum, Aluminum And Steel, Aluminum Alloy	Sheath Material:	None
Insulation Material:	Bare, PE, XLPE, PVC	Samples:	US$ 1.99/Meter 1 Meter(Min.Order) \| Request S

Model NO.:	CAAI Cable
Material Shape:	Round Wire
Range Of Application:	Overhead
Brand:	Ume
Third Party Inspection:	Accepted
Sample:	Free
Color:	Customer Specified
OEM:	Accepted
Printing:	Laser Printing, Hot Printing, Ink Printing
Transport Package:	Drum
Specification:	Up To 336.4AWG
Trademark:	UME
Origin:	China
HS Code:	8544492100
Supply Ability:	7000km Per Month
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead, Construction Sites, Outdoor, Street Lighting
Conductor Material:	Aluminum, Aluminum And Steel, Aluminum Alloy
Sheath Material:	None
Insulation Material:	Bare, PE, XLPE, PVC
Samples:	US$ 1.99/Meter 1 Meter(Min.Order) \| Request S

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

Applications

For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories. They do not require the use of insulators.

CAAI CABLE - Phase Conductor

Phase conductor (Aluminum Conductor )
Size	Construction of Conductor			XLPE Insulation		Approx.	Max. DC Resistance
	No. of Wire	Dia. of Wire	Approx. Conductor Dia.	Nominal Thickness	Insulation Dia.	Weight	at 20°C of conductor


mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
16	7	1.72	4.8	1.14	7.08	63.35	1.91
25	7	2.18	6	1.14	8.28	91.75	1.2
35	7	2.55	7	1.14	9.28	120.56	0.868
50	7	2.97	8	1.52	11.04	168.55	0.641
70	19	2.2	10	1.52	13.04	235.51	0.443
95	19	2.58	11.6	1.52	14.64	312.79	0.32
120	19	2.88	13	2.03	17.06	413.94	0.253

CAAI CABLE - Neutral Conductor

Phase conductor (Aluminum Conductor )
Size	Construction of Conductor			XLPE Insulation		Approx.	Max. DC Resistance
	No. of Wire	Dia. of Wire	Approx. Conductor Dia.	Nominal Thickness	Insulation Dia.	Weight	at 20°C of conductor


mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
16	7	1.72	4.8	1.14	7.08	63.35	1.91
25	7	2.18	6	1.14	8.28	91.75	1.2
35	7	2.55	7	1.14	9.28	120.56	0.868
50	7	2.97	8	1.52	11.04	168.55	0.641
70	19	2.2	10	1.52	13.04	235.51	0.443
95	19	2.58	11.6	1.52	14.64	312.79	0.32
120	19	2.88	13	2.03	17.06	413.94	0.253

CAAI CABLE - Street Lighting Conductor

Street Lighting Conductor ( Aluminum Conductor )
Size	Construction of Conductor			XLPE Insulation		Approx.	Max. DC Resistance
	No. of Wire	Dia. of Wire	Approx. Conductor Dia.	Nominal Thickness	Insulation Dia.	Weight	at 20°C of Conductor


mm2	No.	mm	mm	mm	mm	kg/km	Ω/km
16	7	1.72	4.8	1.14	7.08	63.35	1.91
25	7	2.18	6	1.14	8.28	91.75	1.2

CAAI CABLE - Complete Cable

Completed Cable
Size	Approx. Overall Dia.	Approx. Weight	Size	Approx. Overall Dia.	Approx. Weight


mm2	mm	kg/km	mm2	mm	kg/km
1x16	7.08	63.4	1x16+16+ND25	14.83	196.2
1x25	8.28	91.8	1x16+16+NA25	16.47	222.7
1x35	9.28	120.6	2x16+16+ND25	16.73	259.6
1x50	11.04	168.6	2x25+16+ND25	18.18	316.4
1x70	13.04	235.5	2x16+16+NA25	18.12	286
1x95	14.64	321.8	2x25+16+NA25	19.56	342.8
1x120	17.06	413.9	2x35+16+NA25	20.77	400.5
1x150	18.46	490.7	3x16+NA25	16.68	284.9
2x16	14.16	126.7	3x25+NA25	20.22	370.1
2x25	16.56	183.5	3x16+16+ND25	18.79	322.9
2x35	18.56	241.1	3x16+16+NA25	20.02	349.4
3x16	15.25	190.1	3x25+16+NA25	21.97	434.6
3x25	17.83	275.3	3x25+2x16+NA25	23.93	499.1
3x35	19.98	361.7	2x35+ND25	17.92	309.5
3x50	23.78	505.7	2x35+NA25	19.55	336
3x70	28.08	706.5	3x35+NA25	22.04	456.5
4x16	17.09	253.4	3x35+16+ND25	22.36	494.6
4x25	19.98	367.1	3x35+16+NA25	23.59	521
1x16+ND25	13.47	131.8	3x35+2x16+NA25	25.44	585.5
1x16+NA25	15.75	158.2	3x50+NA35	25.93	631.9
1x25+NA25	16.95	186.6	3x50+16+NA25	26.38	663.8
2x16+ND25	14.75	195.1	3x50+16+NA35	27.07	696.4
2x16+NA25	16.39	221.5	3x50+25+NA35	27.77	724.7
2x25+ND25	16.47	251.9	3x70+NA35	29.55	832.8
2x25+16	16.97	246.9	3x70+16+NA50	31.53	957.5
2x35+16	18.48	305.7	3x70+25+NA50	32.24	985.8
3x25+16	19.32	339.8	3x95+16+NA50	34.13	1188.3
3x35+16	21.13	426.2	3x95+NA50	33.81	1124.9
3x120+16	36.75	1306.3	3x95+16+NA70	35.02	1252.1
2x25+NA25	18.12	278.4	3x120+16+NA70	38.94	1555.5

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

Raw material inspection and test
Production process test
Unqualified product control
Regular test and examination
Finished product inspection

Factory Direct Overhead Aerial Service Drop Caai Cable

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.
UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with a most competitive price within the market.
