Product Details
Certification: ISO9001, CE, SGS TUV
Payment & Shipping Terms
Model NO.: |
Duplex Service Drop |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Transport Package: |
Drum |
Specification: |
Up To 1/0AWG |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
6000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Construction Sites |
Conductor Material: |
Aluminum, Aluminum And Steel, Aluminum Alloy |
Sheath Material: |
None |
Insulation Material: |
Bare, PE, XLPE, PVC |
Samples: |
US$ 0.99/Meter 1 Meter(Min.Order) | Request S |
Model NO.: |
Duplex Service Drop |
Material Shape: |
Round Wire |
Range Of Application: |
Overhead |
Brand: |
Ume |
Third Party Inspection: |
Accepted |
Sample: |
Free |
Color: |
Customer Specified |
OEM: |
Accepted |
Transport Package: |
Drum |
Specification: |
Up To 1/0AWG |
Trademark: |
UME |
Origin: |
China |
HS Code: |
8544492100 |
Supply Ability: |
6000km Per Month |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead, Construction Sites |
Conductor Material: |
Aluminum, Aluminum And Steel, Aluminum Alloy |
Sheath Material: |
None |
Insulation Material: |
Bare, PE, XLPE, PVC |
Samples: |
US$ 0.99/Meter 1 Meter(Min.Order) | Request S |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.1. Applications
Aerial Bundled Cable is primarily used for overhead service applications such as construction sites, outdoor or street lighting, etc.

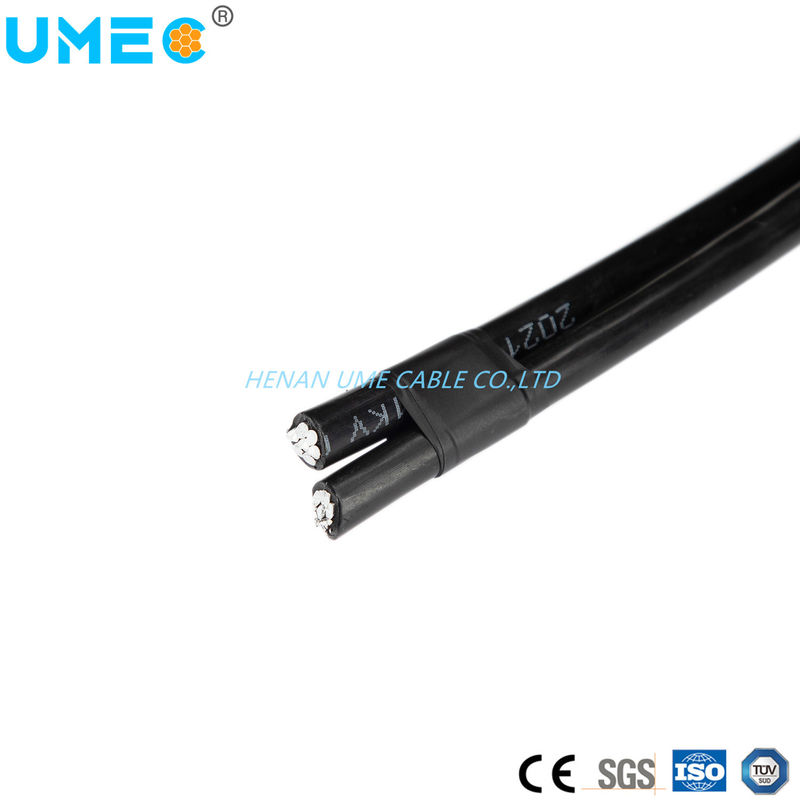

DUPLEX SERVICE DROP CABLE is primarily used in 600V and below overhead service applications such as outdoor lighting, street lighting, construction sites, temporary service for construction, etc. To be used at voltages of 600V or less at conductor temperatures not to exceed 75C.
2. Specification
Duplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsStandard.
3. Standards
Aerial Bundled Cable meets or exceeds the following international standards: IEC, BS, DIN, ASTM, BS, and GB standards.
AAC Neutral Message
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Insul. Thick. (mils) | Size (kcmil) | Stranding | Rated Strength (Ibs.) | XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 147 | 147 | 150 | 120 |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 234 | 234 | 205 | 160 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) | Allowable Ampacities+ | |||||||
| Size (AWG) | Stranding | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size (kcmil) | Stranding | Rated Strength (Ibs.) | XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Chihuahua | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 65 | 65 | 85 | 70 |
| Vizsla | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 68 | 68 | 85 | 70 |
| Harrier | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 99 | 99 | 115 | 90 |
| Whippet | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 103 | 103 | 115 | 90 |
| Schnauzer | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 157 | 157 | 150 | 120 |
| Heeler | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 250 | 250 | 205 | 160 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Insul. Thick. (mils) | Size (kcmil) | Stranding | Rated Strength (Ibs.) | XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Setter | 6 | 1 | 45 | 6 | 43252 | 1190 | 72 | 72 | 85 | 70 |
| Shepherd | 6 | 7 | 45 | 6 | 43252 | 1190 | 75 | 75 | 85 | 70 |
| Eskimo | 4 | 1 | 45 | 4 | 43252 | 1860 | 110 | 110 | 115 | 90 |
| Terrier | 4 | 7 | 45 | 4 | 43252 | 1860 | 115 | 115 | 115 | 90 |
| Chow | 2 | 7 | 45 | 2 | 43252 | 2850 | 176 | 176 | 150 | 120 |
| Bull | 1/0 | 9 | 60 | 1/0 | 43252 | 4380 | 280 | 280 | 205 | 160 |
